   您当前的位置:首页 - 产品中心
 雅马哈SS款配件 >> 8MM ABS外盖

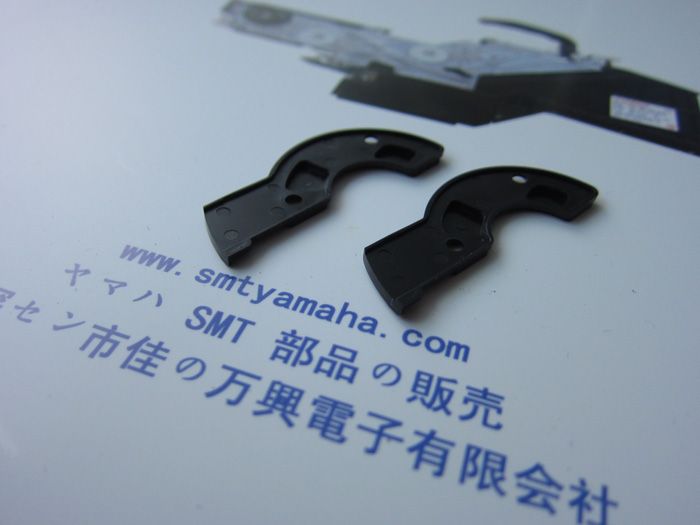

8MM ABS外盖

8MM ABS外盖
产品名称: 8MM ABS外盖
产品料号: KHJ-MC1A4-00
产品备注: 适用于雅马哈贴片机SS款电动智能送料器上

产 品 说 明

大量批发SS款ZS款电动飞达配件

已开发YAMAHA YS系列贴片机YSM系列贴片机飞达配件

YS12/YS24/YS88/YS100/YC8/YSM20/YSM40贴片机配件

SMT同行大量批发中!

厂家直销批发零售中!

欧洲品质,全球共享!

全球最低价!

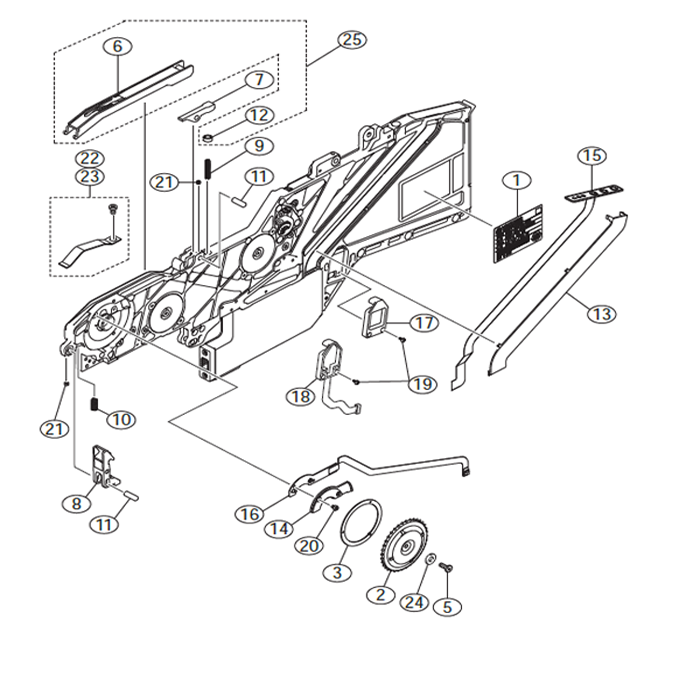

No. Part No. Part Name Q'ty Remarks Change Compati.
1 KHJ-MC10C-00 SEAL,MAIN LABEL 1
2 KHJ-MC131-00 SPROCKET ASSY. 1
2-1 KHJ-MC131-01 SPROCKET ASSY. 1 Resin (2008/10/14) OK
2-2 KHJ-MC131-02 SPROCKET ASSY. 1 Metal (2011/4/27) OK
3 KHJ-MC13A-00 SHIM,SPROCKET 1
4
5 90990-01J043 BOLT,EXTRA LOW HEAD 1
5-1 KHJ-MC13E-01 SCREW,SLIM HRAD 1 (2008/10/14) OK
6 KHJ-MC141-02 TAPE GUIDE 1
6-1 KHJ-MC141-03 TAPE GUIDE 1 Resin (2010/2/3) OK
6-2 KHJ-MC141-04 TAPE GUIDE. 1 Metal (2011/4/27) OK
6-3
KLJ-MC141-00 TAPE GUIDE 1 STD (2013/5/27) OK
KLJ-MC14A-00 TAPE GUIDE,W8P1 1 1mm Pitch (2012/5/10)
KLJ-MC14B-00 TAPE GUIDE,W8P4 1 4mm Pitch (2012/5/10)
7 KHJ-MC144-00 LEVER,TAPE GUIDE R 1
8 KHJ-MC145-00 LEVER,TAPE GUIDE F 1
8-1 KHJ-MC145-01 LEVER,TAPE GUIDE F 1 (2008/5/17) OK
9 KHJ-MC146-02 SPRING,TAPE GUIDE R 1
10 KHJ-MC147-02 SPRING,TAPE GUIDE F 1
11 KHJ-MC15A-00 SHAFT 112 2
12 KHJ-MC149-00 STOPPER,LEVER R 1 (2012/2/9)
13 KHJ-MC167-00 COVER,MENBRANE 1
14 KHJ-MC1A4-00 COVER,ABS 1
15 KHJ-MC1AA-00 SWITCH,OPERATION 1
16 KHJ-M4664-00 ABS BOARD ASSY. 1
17 KHJ-MC1A5-00 DUMMY SPLICE SENS. 1
18 KHJ-MC1A5-10 SPLICE SENS.8MM 1 OPTION
19 KHJ-MC1AB-00 SCREW,PAN HEAD TAP. 2
20 90115-02J003 BOLT HEX.SOCKET HEAD 2
21 92A08-03303 SET SCREW M3X3 2
22 KHJ-MC1C1-00 PLATE, SPRING ASSY. 1 OPTION (2010/8/3)
23 KHJ-MC1C1-10 PLATE, SPRING ASSY. 10 OPTION (2010/8/3)
24 92902-03200 WASHER PLAIN 1 (2008/10/14)
25
KHJ-MC141-S0 PARTS,TAPE GUIDE 1 STD (2012/3/16)
KHJ-MC14A-S0 PARTS,TAPE GUIDE P1 1 1mm Pitch (2012/5/10)
KHJ-MC14B-S0 PARTS,TAPE GUIDE P4 1 4mm Pitch (2012/5/10)
