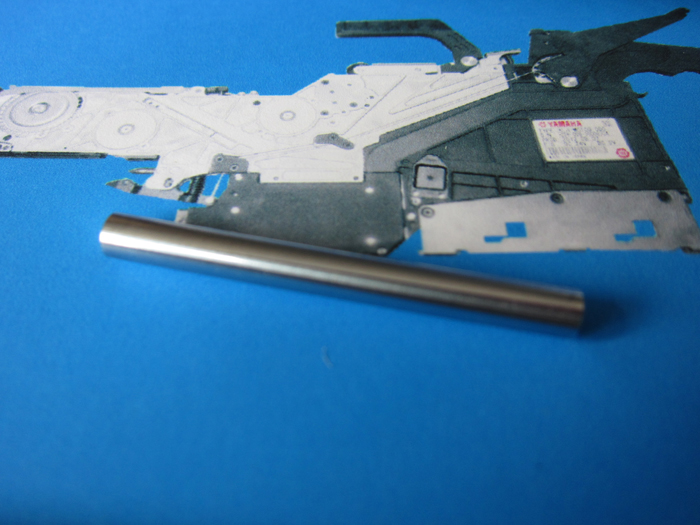

SS/ZS 44MM销子

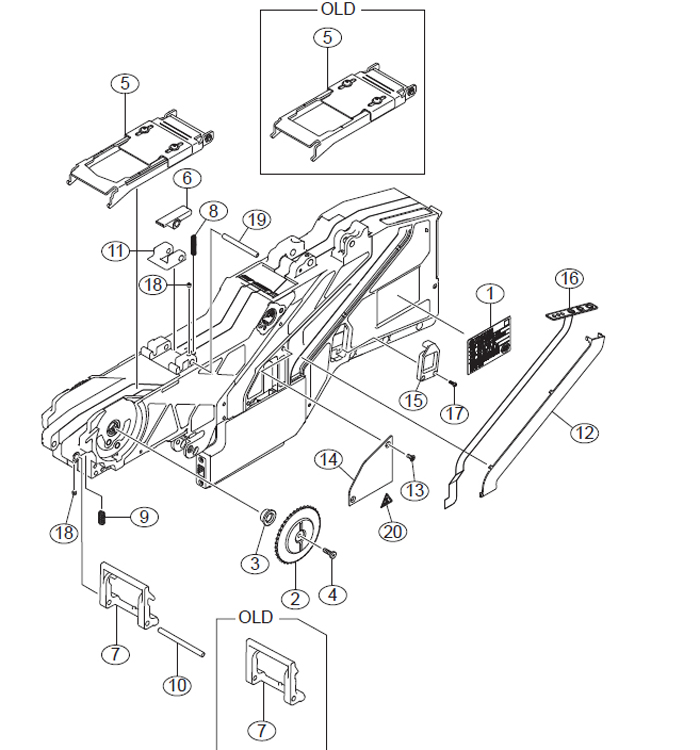

No. Part No. Part Name Q'ty Remarks Change Compati.
1 KHJ-MC60C-00 SEAL,MAIN LABEL 1
2 KHJ-MC532-00 SPROCKET 1
3 KHJ-MC53B-00 BUSH,SPROCKET 1
4 KHJ-MC53E-00 BOLT HEX.S/H LOW 1
5 KHJ-MC541-00 TAPE GUIDE ASSY. 1
5-1 KHJ-MC541-01 TAPE GUIDE ASSY. 1 (2008/5/28) OK
5-2 KHJ-MC541-02 TAPE GUIDE ASSY. 1 (2009/3/2) NG
6 KHJ-MC244-00 LEVER,TAPE GUIDE R 1
7 KHJ-MC645-00 LEVER,TAPE GUIDE F 1
7-1 KHJ-MC645-01 LEVER,TAPE GUIDE F 1 (2009/3/2) NG
8 KHJ-MC146-00 SPRING,TAPE GUIDE R 1
8-1 KHJ-MC146-02 SPRING,TAPE GUIDE R 1 (2009/3/2) NG
9 KHJ-MC247-00 SPRING,TAPE GUIDE F 1
9-1 KHJ-MC247-01 SPRING,TAPE GUIDE F 1 (2009/3/2) NG
10 KHJ-MC64E-00 SHAFT,LEVER 1
11 KHJ-MC64F-00 BASE,LEVER R 1
12 KHJ-MC167-00 COVER,MENBRANE 1
13 90990-09J008 SCREW,FLAT HEAD 2
14 KHJ-MC26K-00 COVER,MENBRANE 2 1
15 KHJ-MC1A5-00 DUMMY SPLICE SENS. 1
16 KHJ-MC1AA-00 SWITCH,OPERATION 1
17 90990-54J003 SCREW,PAN HEAD TAP. 2
18 92A08-03303 SET SCREW M3X3 2
19 99480-04040 PIN,PARALLEL 1
20 90K41-000770 SEAL,HIGH TEMP. 1
