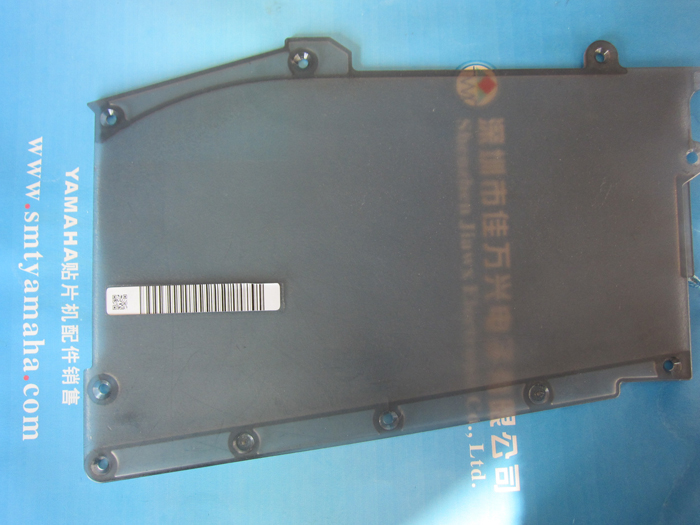

SS 8MM侧面板





















No. Part No. Part Name Q'ty Remarks Change Compati.
1 KHJ-MC101-01 BODY,FEEDER 1
1-1 KHJ-MC101-02 BODY,FEEDER 1 (2008/4/25) NG
1-2 KHJ-MC101-03 BODY,FEEDER 1 (2008/6/25) NG
2 KHJ-MC110-00 MOTOR,FEED 1
3 KHJ-MC102-00 COVER,FEEDER SIDE 1 1
4 KHJ-MC10C-00 SEAL,MAIN LABEL 1
5 KHJ-MC10E-00 SCREW,FLAT HEXLOBE 8
6 KHJ-MC134-00 GEAR,IDLE F1 1
7 KHJ-MC135-00 GEAR,IDLE F2 1
8 KHJ-MC136-01 GEAR,IDLE F3 1
9 KHJ-MC137-00 GEAR,IDLE F4 1
10 KHJ-MC138-00 GEAR,DRIVEN 1
11 KHJ-MC139-00 SHAFT,IDLE GEAR 1 3
12 KHJ-MC13C-00 PLATE,PUSHER GEAR 1
13 KHJ-MC13D-00 SPRING,PUSHER PLATE 3
14 KHJ-MC13F-00 SCREW,STAD 2
15 KHJ-MC161-01 BOX,TOP TAPE 1
15-1 KHJ-MC161-02 BOX,TOP TAPE 1 (2008/5/14) NG
16 KHJ-MC162-01 COVER,TOP TAPE BOX 1
16-1 KHJ-MC162-02 COVER,TOP TAPE BOX 1 (2008/5/14) NG
16-2 KHJ-MC162-03 COVER,TOP TAPE BOX 1 (2008/7/18) NG
17 KHJ-MC166-00 BLOCK,P/O TOOTH 1 1
17-1 KHJ-MC166-01 BLOCK,P/O TOOTH 1 1 (2008/4/25) NG
17-2 KHJ-MC166-02 BLOCK,P/O TOOTH 1 1 (2008/11/14)NG
18 KHJ-MC16F-00 SCREW,FLAT HEAD TAP. 6
19 KHJ-MC16J-00 SCREW,FLAT HEAD 2
20 KHJ-MC16U-00 TAIL COVER ASSY. 1
21 KHJ-MC106-00 PLATE,UNDER 1
22 90166-02JA03 SCREW,PAN HEAD 2
23 91317-03006 BOLT HEX.SOCKET HEAD 3
24 91317-03008 BOLT HEX.SOCKET HEAD 2
24-1 91312-03010 BOLT HEX.SOCKET HEAD 2 (2008/4/11) OK
24-2 Delete (2008/4/25)
25 98707-03006 SCREW,FLAT HEAD 3
26 KHJ-MC16W-00 PLATE,P/O TOOTH 1 1 (2008/4/11)
26-1 Delete (2008/5/7)
27 90112-2AJ006 BOLT HEX.SOCKET HEAD 2 (2008/4/25
