SS 8MM手柄

SS 8MM手柄

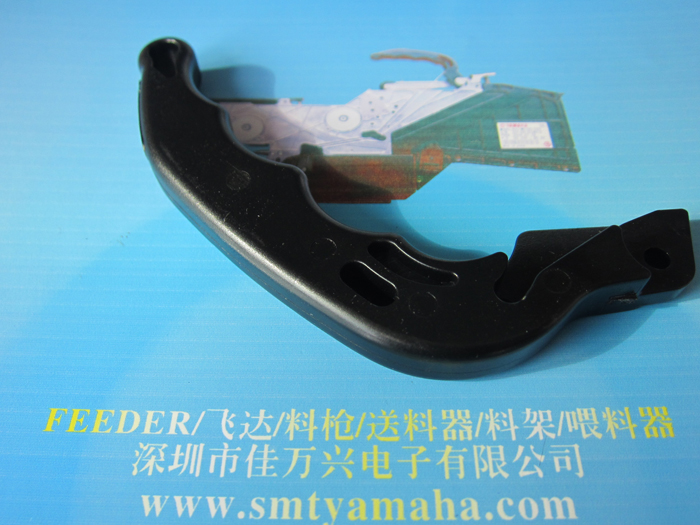

产品名称: SS 8MM手柄
产品料号: KHJ-MC181-00
产品备注: SS 8mm电动飞达配件

产 品 说 明
本公司已开发YAMAHA/YS12/YS12F/YS12P/YS24/YS24X/YS88/YS100/YC8/YSM40高速智能模块贴片机电动/电子SS/ZS款FEEDER消耗品配件.
Japan日本原厂进口技术,品质有保证,与原厂寿命相同,国产价格,欢迎来电咨询!

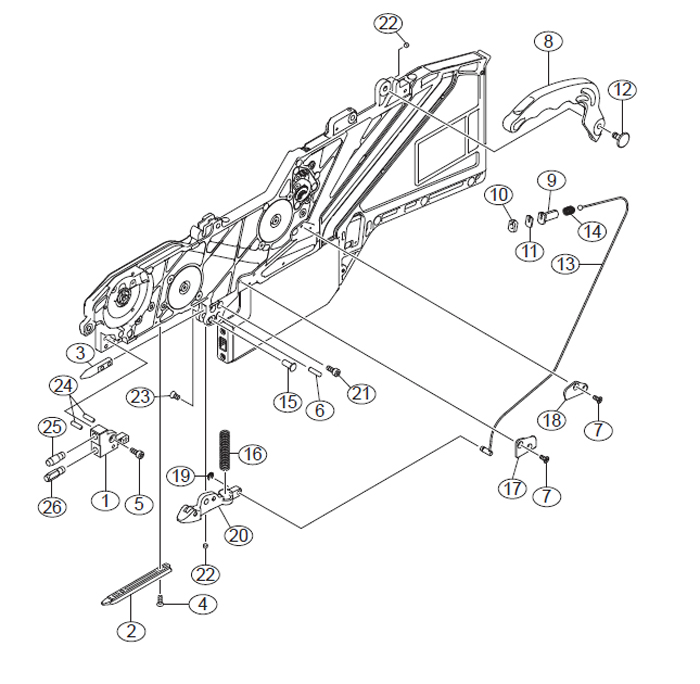

No. Part No. Part Name Q'ty Remarks Change Compati.
1 KHJ-MC103-02 BLOCK,FRONT 1
2 KHJ-MC104-00 RAIL,UNDER 1
3 KHJ-MC105-00 PIN,TAIL 1
4 KHJ-MC10F-00 SCREW,FLAT HEAD 2
5 KHJ-MC10M-00 BOLT,HEX. S/H 2
6 KHJ-MC139-00 SHAFT,IDLE GEAR 1 1
7 KHJ-MC16J-00 SCREW,FLAT HEAD 6
8 KHJ-MC181-00 HANDLE 1
9 KHJ-MC182-00 TENSION,WIRE 1 1
10 KHJ-MC183-00 SPACER,TENSION 1 1
11 KHJ-MC184-00 SPACER,TENSION 2 3
12 KHJ-MC185-00 PIN,HANDLE 1
13 KHJ-MC186-00 WIRE,UNCLAMP 1
14 KHJ-MC187-00 SPRING,TENSION 1
15 KHJ-MC189-00 PIN,CLAMP 1
15-1 KHJ-MC189-01 PIN,CLAMP 1 (2008/6/25) NG
16 KHJ-MC18A-00 SPRING,CLAMP 1
17 KHJ-MC18B-00 COVER,WIRE 1 1
18 KHJ-MC18C-00 COVER,WIRE 2 1
19 KHJ-MC18F-00 CIRCLIP (E) 1
20 KHJ-MC18H-00 CLAMP LEVER ASSY. 1
21 91312-03008 BOLT HEX.SOCKET HEAD 2
22 92A08-03305 SCREW,SET 2
23 98702-03006 SCREW FLAT HEAD 1
24 99480-03010 PIN,PARALLEL 2
23 98702-03006 SCREW FLAT HEAD 1
24 99480-03010 PIN,PARALLEL 2
25 KHJ-MC10S-00 PIN,LOCATE 1 1
26 KHJ-MC10T-00 PIN,LOCATE 2
