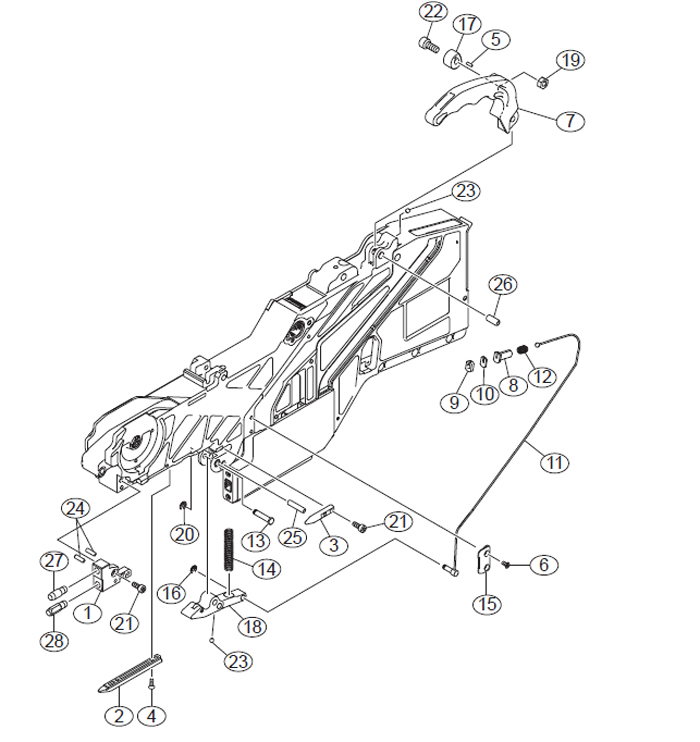

.No. Part No. Part Name Q'ty Remarks
1 KHJ-MC103-02 BLOCK,FRONT 1
2 KHJ-MC104-00 RAIL,UNDER 1
3 KHJ-MC105-00 PIN,TAIL 1
4 KHJ-MC10F-00 SCREW,FLAT HEAD 2
5 KHJ-MC53N-00 PIN,DOWEL 1
6 KHJ-MC16J-00 SCREW,FLAT HEAD 11
7 KHJ-MC281-00 HANDLE 1
8 KHJ-MC182-00 TENSION,WIRE 1 1
9 KHJ-MC183-00 SPACER,TENSION 1 1
10 KHJ-MC184-00 SPACER,TENSION 2 1
11 KHJ-MC286-00 WIRE,UNCLAMP 1
12 KHJ-MC187-00 SPRING,TENSION 1
13 KHJ-MC289-00 PIN,CLAMP 1
14 KHJ-MC18A-00 SPRING,CLAMP 1
15 KHJ-MC28B-00 COVER,WIRE 1 1
16 KHJ-MC18F-00 CIRCLIP (E) 1
17 KHJ-MC48G-00 SHAFT,HANDLE SUPPORT 1
18 KHJ-MC28H-00 CLAMP LEVER ASSY. 1
19 90189-05J056 NUT,HEXAGON 1
20 90440-01J030 CIRCLIP(E) 1
21 91317-03008 BOLT HEX.SOCKET HEAD 4
22 91317-05012 BOLT HEX.SOCKET HEAD 1
23 92A08-03303 SET SCREW M3X3 5
24 99480-03010 PIN,PARALLEL 2
25 99480-04018 PIN,PARALLEL 1
26 99480-05012 PIN,PARALLEL 1
27 KHJ-MC10S-00 PIN,LOCATE 1 1
28 KHJ-MC10T-00 PIN,LOCATE 2 1
