12/16MM-72MM 手柄钢丝

大量批发SS款ZS款电动飞达配件

已开发YAMAHA YS系列贴片机YSM系列贴片机飞达配件

YS12/YS24/YS88/YS100/YC8/YSM20/YSM40贴片机配件

SMT同行大量批发中!

厂家直销批发零售中!

欧洲品质,全球共享!

全球最低价!

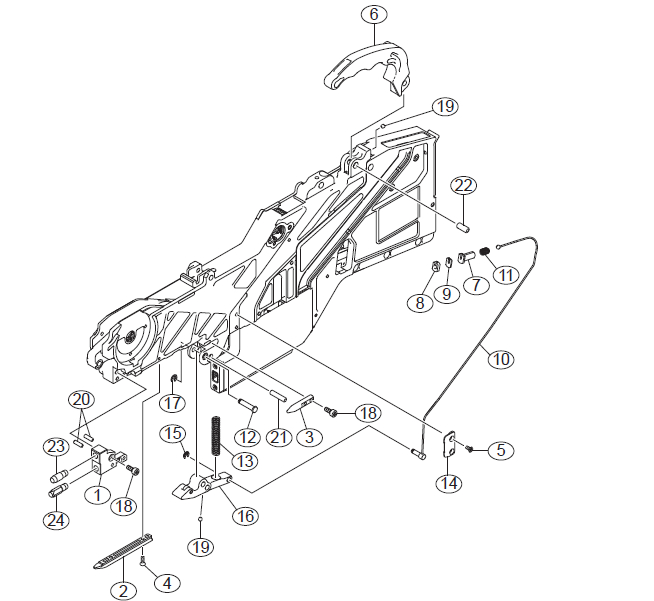

 No. Part No. Part Name Q'ty Remarks
1 KHJ-MC103-01 BLOCK,FRONT 1
2 KHJ-MC104-00 RAIL,UNDER 1
3 KHJ-MC105-00 PIN,TAIL 1
4 KHJ-MC10F-00 SCREW,FLAT HEAD 2
5 KHJ-MC16J-00 SCREW,FLAT HEAD 11
6 KHJ-MC281-00 HANDLE 1
7 KHJ-MC182-00 TENSION,WIRE 1 1
8 KHJ-MC183-00 SPACER,TENSION 1 1
9 KHJ-MC184-00 SPACER,TENSION 2 1
10 KHJ-MC286-00 WIRE,UNCLAMP 1
11 KHJ-MC187-00 SPRING,TENSION 1
12 KHJ-MC289-00 PIN,CLAMP 1
13 KHJ-MC18A-00 SPRING,CLAMP 1
14 KHJ-MC28B-00 COVER,WIRE 1 1
15 KHJ-MC18F-00 CIRCLIP (E) 1
16 KHJ-MC28H-00 CLAMP LEVER ASSY. 1
17 90440-01J030 CIRCLIP(E) 1
18 91317-03008 BOLT HEX.SOCKET HEAD 4
19 92A08-03303 SET SCREW M3X3 5
20 99480-03010 PIN,PARALLEL 3
21 99480-04018 PIN,PARALLEL 1
22 99480-05012 PIN,PARALLEL
