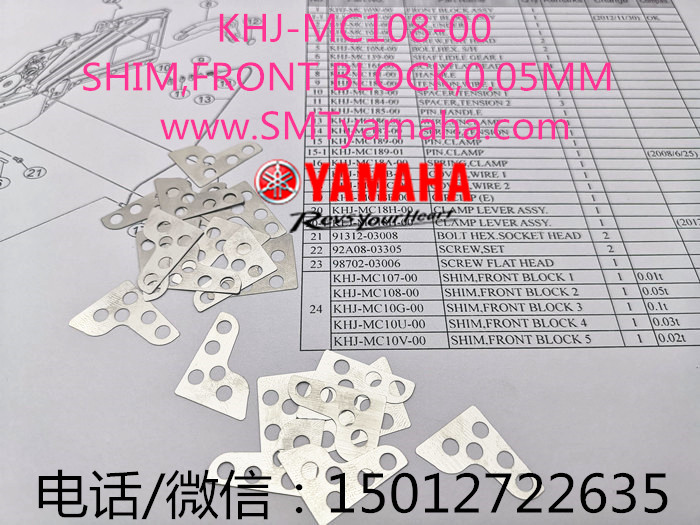

SHIM,FRONT BLOCK 2， T0.05
发布时间：2019-10-5 15:53:47 阅读：3883次
| 产品名称： |
SHIM,FRONT BLOCK 2， T0.05 |
| 产品料号： |
KHJ-MC108-00 |
| 产品备注： |
|
| 产 品 说 明 |
No. Part No. Part Name Q’ty Remarks Change Compati.
1 KHJ-MC10W-00 FRONT BLOCK ASSY 1
1-1 KLJ-MC10W-00 FRONT BLOCK ASSY 1 (2012/11/30) OK
2 KHJ-MC104-00 RAIL,UNDER 1
3 KHJ-MC105-00 PIN,TAIL 1
4 KHJ-MC10F-00 SCREW,FLAT HEAD 2
5 KHJ-MC16J-00 SCREW,FLAT HEAD 11
6 KHJ-MC281-00 HANDLE 1
7 KHJ-MC182-00 TENSION,WIRE 1 1
8 KHJ-MC183-00 SPACER,TENSION 1 1
9 KHJ-MC184-00 SPACER,TENSION 2 1
10 KHJ-MC286-00 WIRE,UNCLAMP 1
11 KHJ-MC187-00 SPRING,TENSION 1
12 KHJ-MC289-00 PIN,CLAMP 1
13 KHJ-MC18A-00 SPRING,CLAMP 1
14 KHJ-MC28B-00 COVER,WIRE 1 1
15 KHJ-MC18F-00 CIRCLIP (E) 1
16 KHJ-MC28H-00 CLAMP LEVER ASSY. 1
17 90440-01J030 CIRCLIP(E) 1
18 91317-03008 BOLT HEX.SOCKET HEAD 4
19 92A08-03303 SET SCREW M3X3 5
20
21 99480-04018 PIN,PARALLEL 1
22 99480-05012 PIN,PARALLEL 1
23
KHJ-MC107-00 SHIM,FRONT BLOCK 1 1 0.01t
KHJ-MC108-00 SHIM,FRONT BLOCK 2 1 0.05t
KHJ-MC10G-00 SHIM,FRONT BLOCK 3 1 0.1t
KHJ-MC10U-00 SHIM,FRONT BLOCK 4 1 0.03t
KHJ-MC10V-00 SHIM,FRONT BLOCK 5 1 0.02t
|
|
|
