8MM-24MM GEAR,IDLE F3

A large number of wholesale paragraphs SS ZS electric feida accessories

Developed YAMAHA YS series SMT machine YSM placement machine feida accessories

YS12/YS24/YS88/YS100/YC8/YSM20/YSM40 Feeder with Parts

SMT industry a large number of wholesale!

Manufacturers selling in wholesale and retail!

European quality, global sharing!

The lowest price in the world!

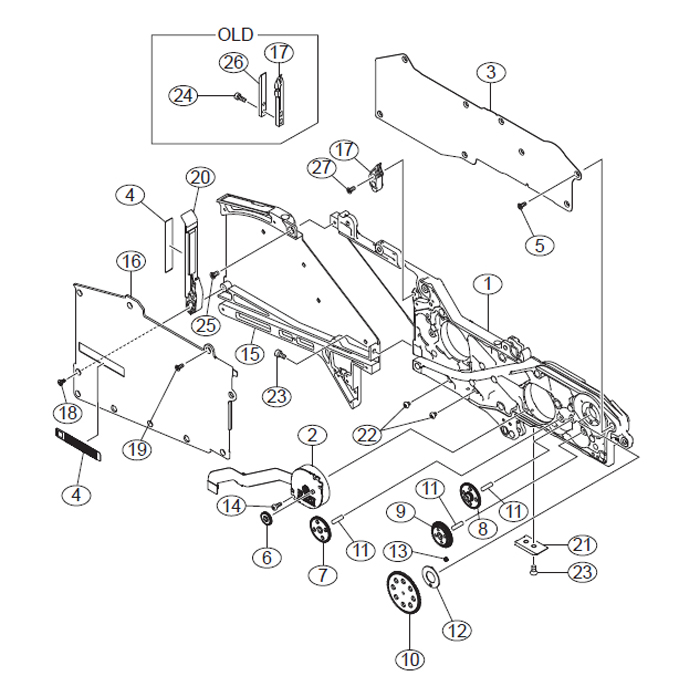

No. Part No. Part Name Q'ty Remarks
1 KHJ-MC101-01 BODY,FEEDER 1
2 KHJ-MC110-00 MOTOR,FEED 1
3 KHJ-MC102-00 COVER,FEEDER SIDE 1 1
4 KHJ-MC10C-00 SEAL,MAIN LABEL 1
5 KHJ-MC10E-00 SCREW,FLAT HEXLOBE 8
6 KHJ-MC134-00 GEAR,IDLE F1 1
7 KHJ-MC135-00 GEAR,IDLE F2 1
8 KHJ-MC136-01 GEAR,IDLE F3 1
9 KHJ-MC137-00 GEAR,IDLE F4 1
10 KHJ-MC138-00 GEAR,DRIVEN 1
11 KHJ-MC139-00 SHAFT,IDLE GEAR 1 3
12 KHJ-MC13C-00 PLATE,PUSHER GEAR 1
13 KHJ-MC13D-00 SPRING,PUSHER PLATE 3
14 KHJ-MC13F-00 SCREW,STAD 2
15 KHJ-MC161-01 BOX,TOP TAPE 1
16 KHJ-MC162-01 COVER,TOP TAPE BOX 1
17 KHJ-MC166-00 BLOCK,P/O TOOTH 1 1
18 KHJ-MC16F-00 SCREW,FLAT HEAD TAP. 6
19 KHJ-MC16J-00 SCREW,FLAT HEAD 2
20 KHJ-MC16U-00 TAIL COVER ASSY. 1
21 KHJ-MC106-00 PLATE,UNDER 1
22 90166-02JA03 SCREW,PAN HEAD 2
23 91317-03006 BOLT HEX.SOCKET HEAD 3
24 91317-03008 BOLT HEX.SOCKET HEAD 2
25 98707-03006 SCREW,FLAT HEAD 3
