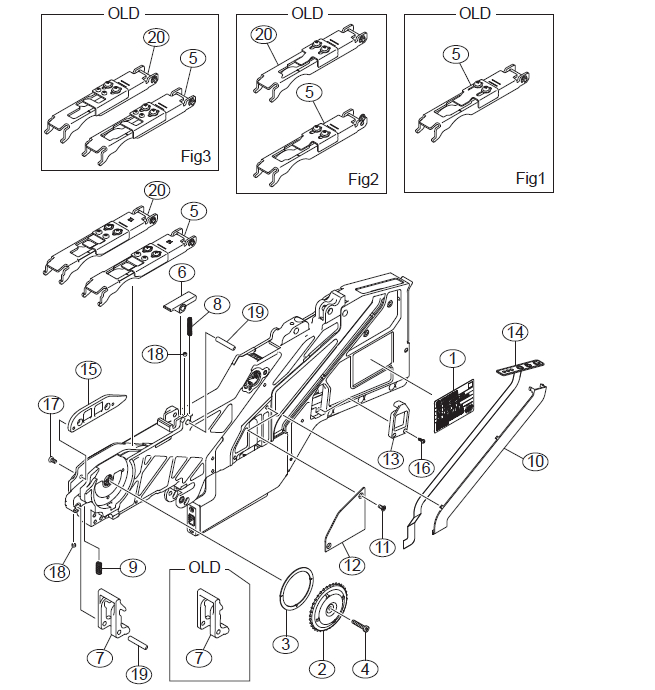

No. Part No. Part Name Q’ty Remarks Change Compati.
1 KHJ-MC20C-00 SEAL,MAIN LABEL 1
2 KHJ-MC132-00 SPROCKET 1
2-1 KHJ-MC132-01 SPROCKET ASSY. 1 Resin (2008/10/14) OK
2-2 KHJ-MC132-02 SPROCKET ASSY. 1 Metal (2011/4/27) OK
3 KHJ-MC23A-00 SHIM,SPROCKET 1
4 KHJ-MC23E-00 BOLT HEX.S/H LOW 1
5 KHJ-MC241-00 TAPE GUIDE ASSY. 1 Fig1
5-1 KHJ-MC241-01 TAPE GUIDE ASSY. 16 1 Fig2 (2008/5/16) NG
5-2 KHJ-MC241-02 TAPE GUIDE ASSY. 16 1 Fig3 (2008/11/18) OK
5-3 KHJ-MC241-03 TAPE GUIDE ASSY. 16 1 Fig4 (2009/2/23) NG
5-4 KHJ-MC241-04 TAPE GUIDE ASSY. 16 1 16mm Use (2009/7/7) OK
5-5 KHJ-MC241-05 TAPE GUIDE ASSY. 16 1 16mm Use (2009/12/2) OK
6 KHJ-MC244-00 LEVER,TAPE GUIDE R 1
7 KHJ-MC245-00 LEVER,TAPE GUIDE F 1
7-1 KHJ-MC245-01 LEVER,TAPE GUIDE F 1 (2009/2/23) NG
8 KHJ-MC146-02 SPRING,TAPE GUIDE R 1
9 KHJ-MC247-00 SPRING,TAPE GUIDE F 1
9-1 KHJ-MC247-01 SPRING,TAPE GUIDE F 1 (2009/2/23) NG
10 KHJ-MC167-00 COVER,MENBRANE 1
11 KHJ-MC16J-00 SCREW,FLAT HEAD 11
12 KHJ-MC26K-00 COVER,MENBRANE 2 1
13 KHJ-MC1A5-00 DUMMY SPLICE SENS. 1
14 KHJ-MC1AA-00 SWITCH,OPERATION 1
15 KHJ-MC24D-00 PLATE,GUIDE 12 1
16 KHJ-MC1AB-00 SCREW,PAN HEAD TAP. 2
17 98707-03006 SCREW,FLAT HEAD 5
18 92A08-03303 SET SCREW M3X3 5
19 99480-04022 PIN,PARALLEL 2
20 KHJ-MC24J-00 TAPE GUIDE ASSY.12 1 Fig2 (2008/5/17)
20-1 KHJ-MC24J-01 TAPE GUIDE ASSY.12 1 Fig3 (2008/11/18) OK
20-2 KHJ-MC24J-02 TAPE GUIDE ASSY.12 1 Fig4 (2009/2/23) NG
20-3 KHJ-MC24J-03 TAPE GUIDE ASSY.12 1 12mm Use (2009/7/7) OK
20-4 KHJ-MC24J-04 TAPE GUIDE ASSY.12 1 12mm Use (2009/12/2) OK
21 KHJ-MC24W-S0 HOOK TAPE GUIDE KIT 1 SI1002002
22 92902-03200 WASHER PLAIN 1 (2008/10/14)
|
