大量批發SS款ZS款電動飛達配件

已開發YAMAHA YS系列貼片機YSM系列貼片機飛達配件

YS12/YS24/YS88/YS100/YC8/YSM20/YSM40貼片機配件

SMT同行大量批發中!

廠家直銷批發零售中!

歐洲品質,全球共用!

全球最低價!

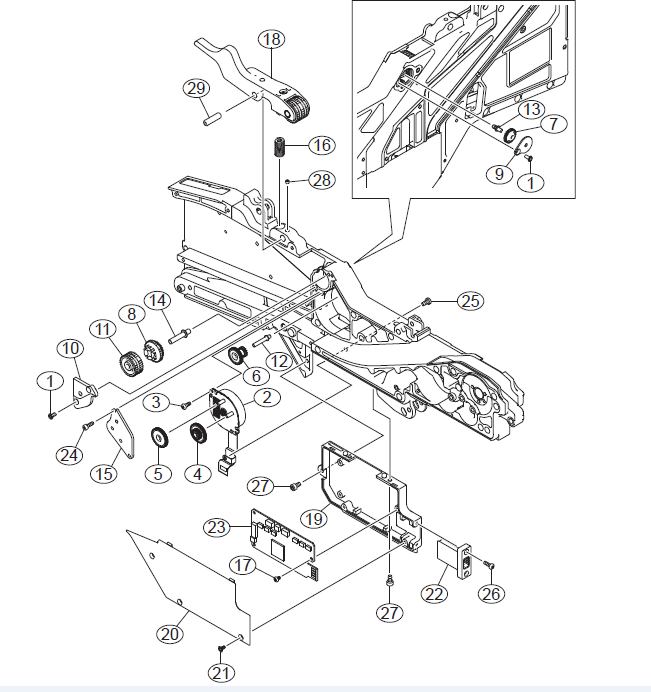

No. Part No. Part Name Q'ty Remarks
1 KHJ-MC10E-00 SCREW,FLAT HEXLOBE 11
2 KHJ-MC210-10 MOTOR, PEEL 1
3 KHJ-MC13F-00 SCREW,STAD 4
4 KHJ-MC251-00 GEAR,IDLE P1 1
5 KHJ-MC252-00 GEAR,IDLE P2 1
6 KHJ-MC253-00 GEAR,IDLE P3 1
7 KHJ-MC254-00 GEAR,IDLE P4 1
8 KHJ-MC256-00 ROLLER,PEEL OFF 1 1
9 KHJ-MC258-00 COVER,IDLE GEAR 1 1
10 KHJ-MC259-00 COVER,IDLE GEAR 2 1
11 KHJ-MC25A-00 SUB-ROLLER,1 1
12 KHJ-MC25B-00 SHAFT,IDLE GEAR P3 1
13 KHJ-MC25C-00 SHAFT,IDLE GEAR P4 1
14 KHJ-MC25D-00 SHAFT,ROLLER 1 1
15 KHJ-MC25E-00 COVER,IDLE GEAR 3 1
16 KHJ-MC26E-00 SPRING,P/O LEVER 1
17 KHJ-MC16H-00 SCREW,PAN HEAD TAP. 3
18 KHJ-MC26V-00 P/O LEVER ASSY. 1
19 KHJ-MC1A1-00 BOX,EL 1
20 KHJ-MC1A2-00 COVER,BOX EL 1
21 KHJ-MC1A6-00 SCREW,FLAT HEXLOBE T 3
22 KHJ-MC1A9-00 CONNECTOR,BOARD 1
23 KHJ-M4488-00 FEEDER BOARD ASSY 1
24 90115-2AJ008 BOLT HEX.SOCKET HEAD 2
25 90166-02JA03 SCREW,PAN HEAD 2
26 90166-02JA08 SCREW PAN H.:M2.5X8 2
27 91317-03006 BOLT HEX.SOCKET HEAD 3
28 92A08-03303 SET SCREW M3X3 5
29 99480-05018 PIN,PARALLEL
