德國工藝製造,日本驗收超標品質
找佳萬興公司,沒有中間商賺差價
手機/微信：13923705220
YAMAHA
YS12/YS24/YSM10/YSM20/YSM40R高速貼片機SS款、ZS款8MM-104MM板卡/馬達/保險扣/壓料蓋/定位柱/彈簧/尾巴蓋子/手柄/齒輪/外蓋/螺絲/彈片.......

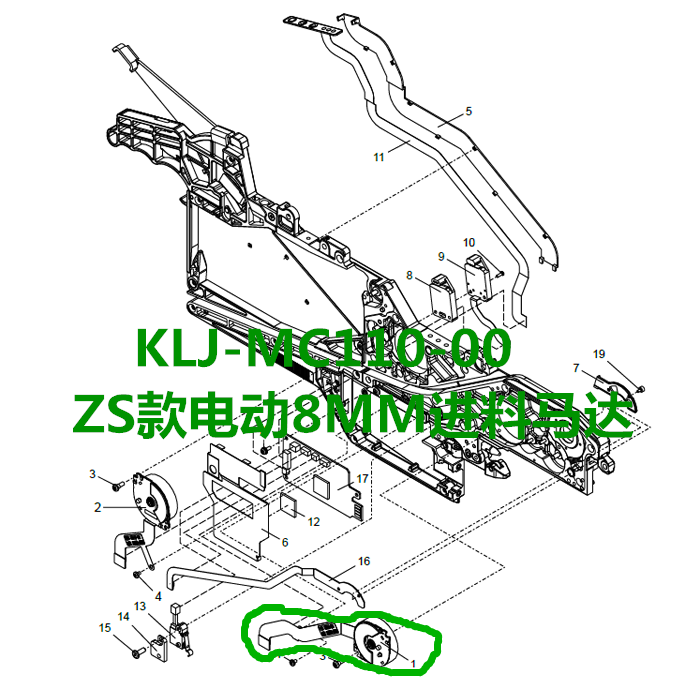

NO Parts_No. Parts_Name Q_ty Remarks Change Compati
1 KLJ-MC110-00 MOTOR,FEED 1
2 KLJ-MC120-00 MOTOR,PEEL 1
3 90990-08J021 SCREW,STAD 4
4 90166-02JA03 SCREW,PAN HEAD 2
5 KLJ-MC167-00 COVER,MENBRANE 1
6 KLJ-MC1A3-00 COVER,CABLE 1
7 KLJ-MC1A4-00 COVER,ABS 1
8 KLJ-MC1A5-00 DUMMY SPLICE SENS. 1 <Note-1>
9 KHJ-MC1A5-10 SPLICE SENS. 8MM 1 <Note-2>
10 90990-08J020 SCREW,M2X5 2
11 KLJ-MC1AA-00 SWITCH,OPERATION 1
12 KHJ-MC1AC-00 INSULATION SHEET 1
13 KLJ-MC1AL-00 SW,LIMIT 1
14 KLJ-MC1AJ-00 NUT,PLATE 1
15 KLJ-MC1AK-00 EXTRA,LOW HEAD CAP 1
16 KHJ-M4664-01 ABS BOARD ASSY. 1
17 KLJ-M4488-00 FEEDER BOARD ASSY. 1
18 90166-12JA06 SCREW,PAN HEAD W/W 3
19 90115-02J003 BOLT HEX.SOCKET HEAD 2
|
| |
| |
|
|
