ZS 8MM-104MM電動フィーダボタン保護カバー
Add date:2017-8-19 11:10:03 Hits:6048
| 製品名： |
ZS 8MM-104MM電動フィーダボタン保護カバー |
| 部品番号： |
KLJ-MC167-00 |
| 製品備考： |
ZS 8MM-104MM |

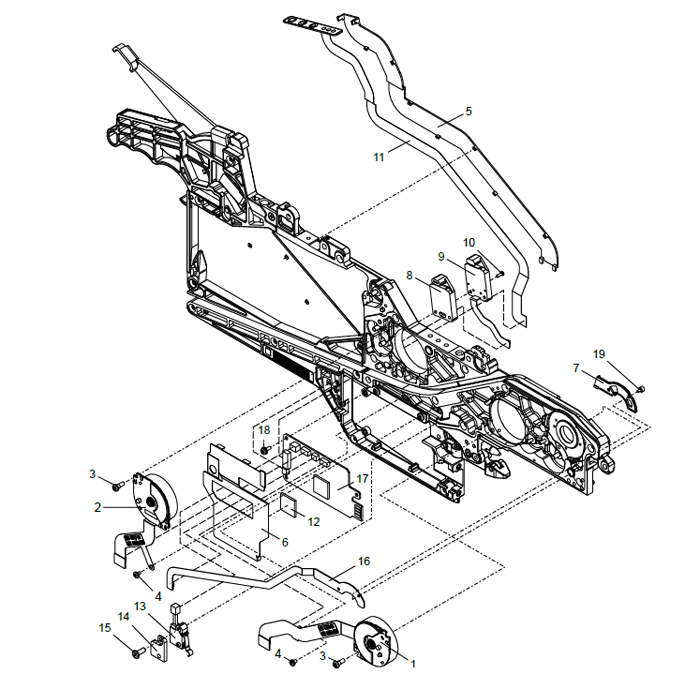

商品の説明 |
NO Parts_No. Parts_Name Q_ty Remarks Change Compati
1 KLJ-MC110-00 MOTOR,FEED 1
2 KLJ-MC120-00 MOTOR,PEEL 1
3 90990-08J021 SCREW,STAD 4
4 90166-02JA03 SCREW,PAN HEAD 2
5 KLJ-MC167-00 COVER,MENBRANE 1
6 KLJ-MC1A3-00 COVER,CABLE 1
7 KLJ-MC1A4-00 COVER,ABS 1
8 KLJ-MC1A5-00 DUMMY SPLICE SENS. 1 <Note-1>
9 KHJ-MC1A5-10 SPLICE SENS. 8MM 1 <Note-2>
10 90990-08J020 SCREW,M2X5 2
11 KLJ-MC1AA-00 SWITCH,OPERATION 1
12 KHJ-MC1AC-00 INSULATION SHEET 1
13 KLJ-MC1AL-00 SW,LIMIT 1
14 KLJ-MC1AJ-00 NUT,PLATE 1
15 KLJ-MC1AK-00 EXTRA,LOW HEAD CAP 1
16 KHJ-M4664-01 ABS BOARD ASSY. 1
17 KLJ-M4488-00 FEEDER BOARD ASSY. 1
18 90166-12JA06 SCREW,PAN HEAD W/W 3
19 90115-02J003 BOLT HEX.SOCKET HEAD 2
|
|
|
| ヒット数：6048 追加された：2017-8-19 【印刷】 【戻る】 |
|
