이 회사는 고속 지능형 모듈 마운터 YAMAHA/YS12/YS12F/YS12P/YS24/YS24X/YS88/YS100/YC8/YSM40 전기 SS/ZS 모델 FEEDER 부품 소모품 액세서리를 개발했다.
일본은 품질, 국내 가격, 문의에 오신 것을 환영합니다 수입!

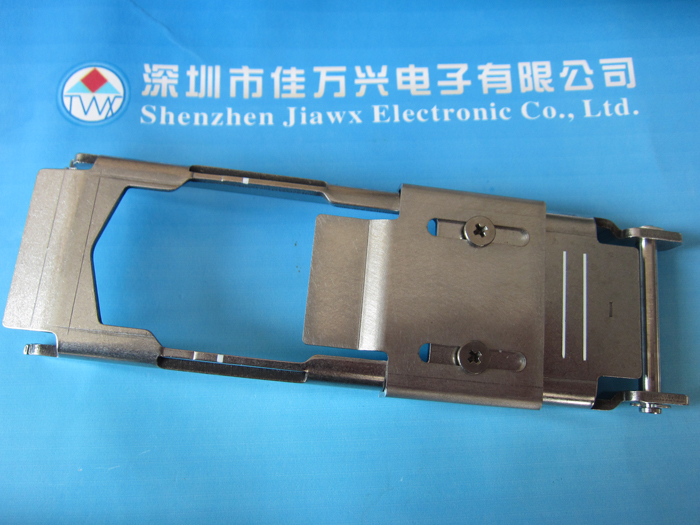

GUIDE,SPROKET & E/L
No. Part No. Part Name Q'ty Remarks Change Compati.
1 KHJ-MC40C-00 SEAL,MAIN LABEL 1
2 KHJ-MC132-00 SPROCKET 1
3 KHJ-MC23A-00 SHIM,SPROCKET 1
4 KHJ-MC43E-00 BOLT HEX.S/H LOW 1
5 KHJ-MC441-00 TAPE GUIDE ASSY. 1
5-1 KHJ-MC441-01 TAPE GUIDE ASSY. 1 (2008/5/17) OK
5-2 KHJ-MC441-03 TAPE GUIDE ASSY. 1 (2009/3/2) NG
6 KHJ-MC244-00 LEVER,TAPE GUIDE R 1
7 KHJ-MC445-00 LEVER,TAPE GUIDE F 1
7-1 KHJ-MC445-01 LEVER,TAPE GUIDE F 1 (2009/3/2) NG
8 KHJ-MC146-00 SPRING,TAPE GUIDE R 1
8-1 KHJ-MC146-02 SPRING,TAPE GUIDE R 1 (2009/3/2) NG
9 KHJ-MC247-00 SPRING,TAPE GUIDE F 1
9-1 KHJ-MC247-01 SPRING,TAPE GUIDE F 1 (2009/3/2) NG
10 KHJ-MC167-00 COVER,MENBRANE 1
11 KHJ-MC16J-00 SCREW,FLAT HEAD 11
12 KHJ-MC26K-00 COVER,MENBRANE 2 1
13 KHJ-MC1A5-00 DUMMY SPLICE SENS. 1
14 KHJ-MC1AA-00 SWITCH,OPERATION 1
15 KHJ-MC1AB-00 SCREW,PAN HEAD TAP. 2
16 92A08-03303 SET SCREW M3X3 5
17 99480-04030 PIN,PARALLEL 2
|
