NO Parts_No. Parts_Name Q_ty Remarks Change Compati
1 KLJ-MC10W-00 FRONT BLOCK ASSY. 1
2 90990-01J042 BOLT,HEX. S/H 2
3 KHJ-MC105-00 PIN,TAIL 1
4 91312-03008 BOLT HEX.SOCKET HEAD 2
5 KHJ-MC206-00 PLATE,UNDER 1
6 KHJ-MC107-00 SHIM,FRONT BLOCK 1 1 T0.01 <Note-1>
7 KHJ-MC108-00 SHIM,FRONT BLOCK 2 1 T0.05 <Note-1>
8 KHJ-MC10G-00 SHIM,FRONT BLOCK 3 1 T0.10 <Note-1>
9 KHJ-MC10U-00 SHIM,FRONT BLOCK 4 1 T0.03 <Note-1>
10 KHJ-MC10V-00 SHIM,FRONT BLOCK 5 1 T0.02 <Note-1>
11 KHJ-MC109-00 SHIM,PLATE UNDER 1 2 T0.01 <Note-2>
12 KHJ-MC10A-00 SHIM,PLATE UNDER 2 2 T0.05 <Note-2>
13 KLJ-MC2F3-00 BRKT. W,REEL HOLDER 1
14 90990-09J008 SCREW,FLAT HEAD 11
15 KHJ-MC183-00 SPACER,TENSION 1 1
16 KHJ-MC184-00 SPACER,TENSION 2 1 <Note-1>

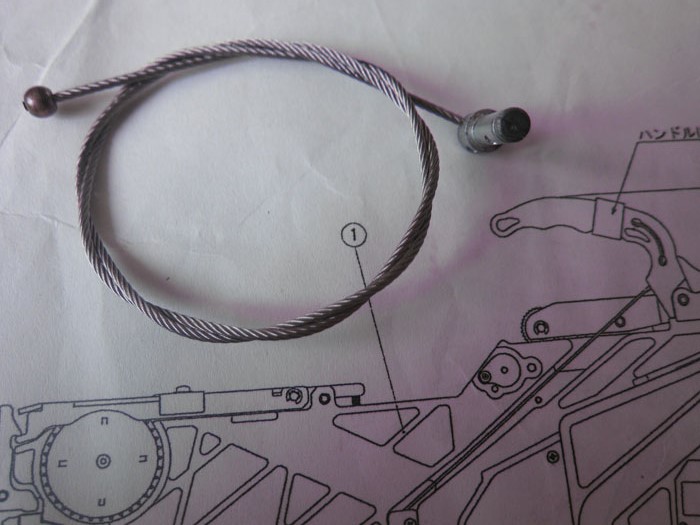

17 KLJ-MC186-00 WIRE,UNCLAMP 1
18 KHJ-MC187-00 SPRING,TENSION 1
19 KLJ-MC18H-00 CLAMP LEVER ASSY. 1
20 KHJ-MC139-00 SHAFT,IDLE GEAR 1 1
21 KHJ-MC289-00 PIN,CLAMP 1
22 90440-01J030 CIRCLIP 1
23 KHJ-MC18A-00 SPRING,CLAMP 1
24 KLJ-MC18B-00 COVER,WIRE 1 1
25 KLJ-MC28C-00 COVER W,WIRE 2 1
26 KLJ-MC18K-00 LEVER,UNCLAMP ASSY. 1
27 KLJ-MC18L-00 PIN,LEVER UNCLAMP 1
28 90990-14J001 CIRCLIP 2
29 98707-03006 SCREW,FLAT HEAD 2
30 92A08-03306 SCREW,SET 1
 |
